LiveNA Quick Start Guide : Configuration : Configure LiveNX to connect with LiveNA
Configure LiveNX to connect with LiveNA
LiveNA is configured via the LiveNX Operations Dashboard (WebUI). To establish the connection:
1. Open LiveNX Operations Dashboard (WebUI).
2. Select Configure > LiveNA.
3. Click Connect LiveNA

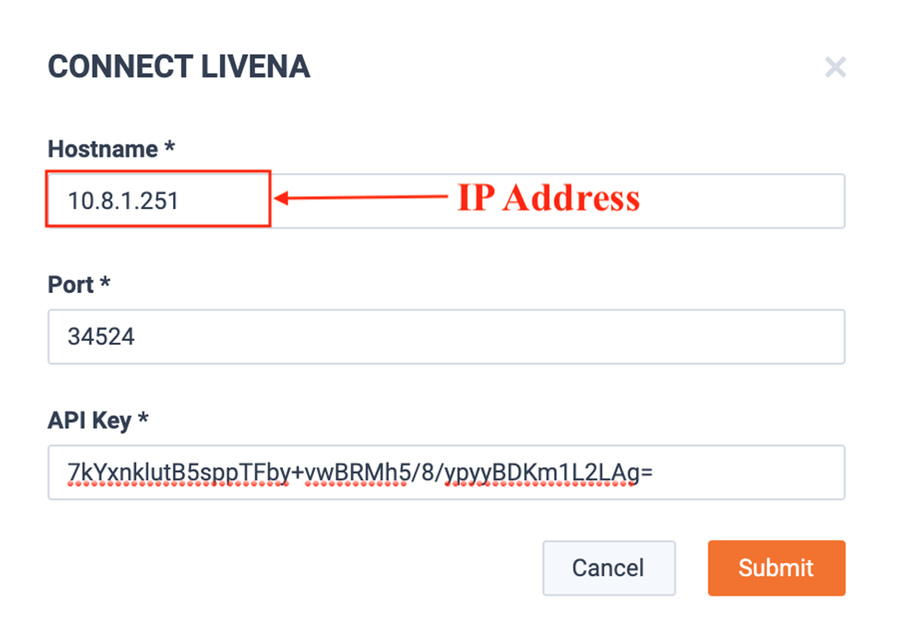

4. Enter the host name, port number, and API key of LiveNA.
NOTE: The API key was created from LiveNA’s shell in the previous step.
NOTE: For Self-Signed Certificate, use IP address instead of DNS name.
5. Verify the status is Connected
